Prenup Disconnect

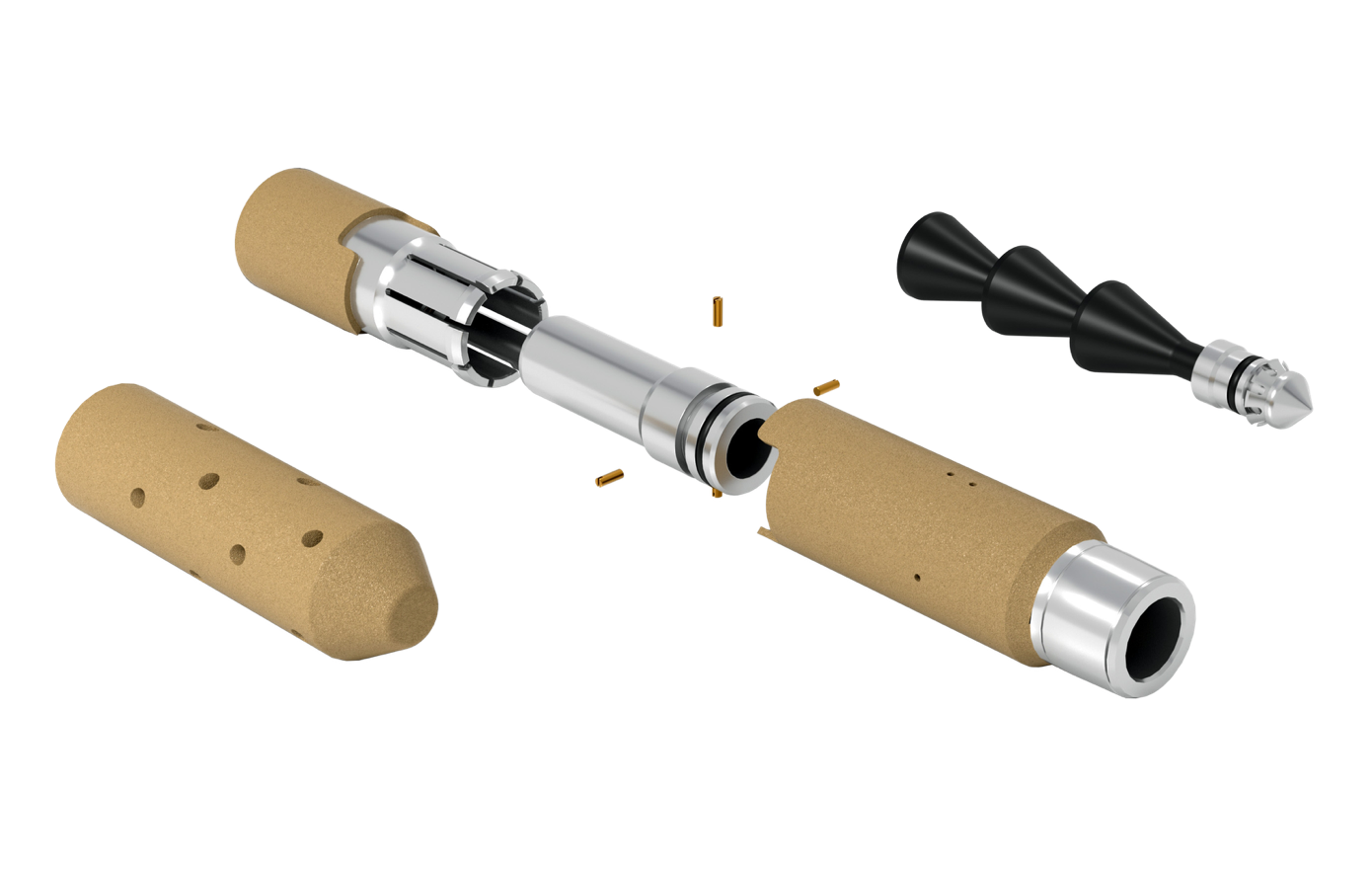

The innovative Prenup™ Plug Placement Aid enables faster, more consistent plug setting—eliminating non-productive time and reducing the need for remedial work. Built with industry-leading strength and torque ratings, the Citadel Prenup™ disconnect performs reliably even in the most demanding operations. When paired with sacrificial pipe or tubing, Prenup™ tools make cement plug placement and work-string removal straightforward, efficient, and safe.

  • Available in fully drillable aluminum (PDC or Roller Cone) or high strength steel
  • Available in any combination of drill pipe/tubing threads (other combinations upon request):
  • Workstring (box): 2.375 EUE, 2.875 EUE, 3.500 EUE, NC38, NC50, 5.500 FH, 6.625 FH
  • Tailpipe (pin): 2.375 EUE, 2.875 EUE, 3.500 EUE, NC38, NC50
  • Tensile rating between 10,000 lbs and 160,000 lbs depending on size and drillabality requirements
  • Suitable for applications that require rotation of the work string
  • Released with applied pressure rather than over pull, improving cement plug integrity Unlimited sacrificial tubing length
